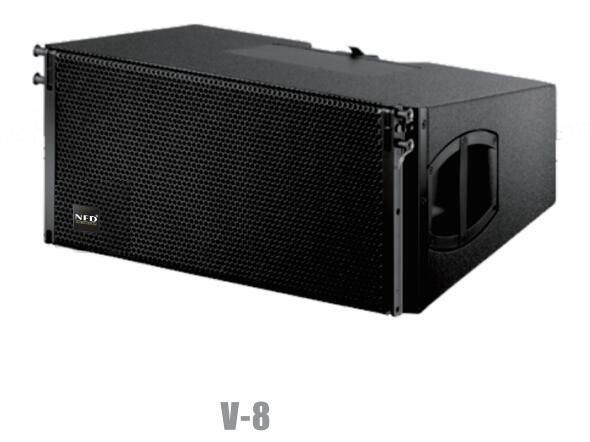

V-8 3-way line array speakers

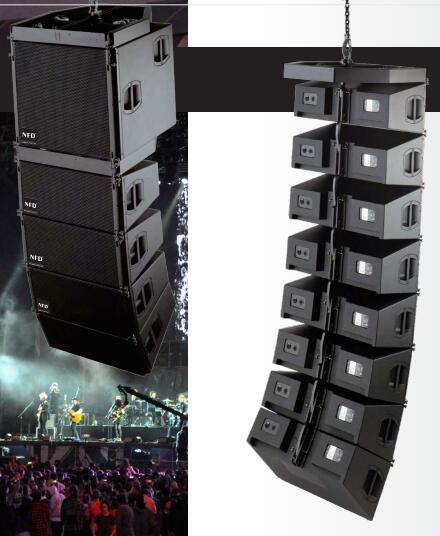

V-8 adopts passive 3-way neodymium driver design：double 12 inches LF neodymium drivers, one 8 inches MF neodymium driver with horn, double 1.4 inches HF compression neodymium drivers(with 2.5 inches voice coil) and circle type wave converter, due to the symmetric dipoles arrangements of LF, MF and HF drivers and cross coupling structure, greatly ensure min. 250Hz during 80°horizontal diffusion angle. Optimized mechanical and audio acoustic design,vertical hoisting, allows hoisting quantity to reach 24 boxes, which enable V8 to combine an individual array system. Brich wood enclosure, strong metal grill with handles on both sides, the bottom and rear panels equip with flushbonading extra handles.
Adaptive range:
Mainly used in large scale public performance, theatre, concert hall, clubs and different indoor fields like private room, bars, KTV, conference loudspeakers equipments, church etc.
Technical parameter:




Loudspeaker Units2 x10"LF(16Ω）/1×8"(16Ω）/2×1.4"(16Ω)HF, neodymium loudspeakers
Frequency Range100-16KHz(±3db)
Rated Power(peak)500/2000W
Sensitivity139dB
SPL142dB
Rated Impedance8 Ohm
Mode of Connection2 x Neutrik NL 4, OPTIONAL 2*EP5 or 2*NL8
Hanging AccessoriesProfessional hanging system
Dimension (WxHxD)361mm x 700 mm x 460 mm
Net weight（KG）34kg
Box Structure:V-8 3-way line array speakers
Detailed information
